Power Supply Accessories

Snaptec Australia Power Supply Inverters

Wide range of products to complement and ac or dc power supply and system, this includes: Power Cords , Meters , AC transfer switches , 19 inch rack mount distribution panels , battery isolators , ording diode packages , battery protection units , etc..

Power Supply Accessories

Oring Diode Packages Simultanewous supply from two DC sources Low voltage drop using Schottky diodes Current ratings 30A , 70A
Dual Voltage Alarm Card DC input options: 12V, 24V and 48V Two voltage monitors with LED Status available via relay change over contacts Each Channel can be set to monitor any under voltage condition between 10 - 32V or 20 - 60V Easy panel mount package with screw terminals Suitable for a wide range of applications Case dimensions: 125 x 57 x 32mm
Volts / Amps Meter ( Self Powered ) Self powered from input voltage DC/DC Current Transducer eliminates need for shunt in basic version 2x 16 character LCD display DC input from 10.5V to 150V DC current up to 60A Bi-directional current sensing Flexible mounting options, eg. DIN rail Provides good indication of system status
Din Rail Redundancy Diode Package - 10-60V 10A Decoupling Diode to produce redundant applications or to decouple power sources from each other as well as from the load DC 10 - 60V 0 - 10A Hazardous Location Class I Div. 2 (UL 1604) Mounted and connected in record time, no tools required Usable everywhere Tiny: W x H x D = 45 x 75 x 91mm
Multi Function Alarm Card Multi function alarm card 2 x DC adjustable high or low volt alarms - independently adjustable Earth fault alarm when either + or - rail < 80kohms to earth C/O relay contacts rated 30VDC,2A / 110VDC,0.3A/ 125VAC,0.5A Available in different combinations, eg. DC low/high, earth fault detection only, etc.
19 inch rack mount distribution panel Low cost enhancement to any rack mounted system using the SR Series or other products. Centre divided, allowing segregation of AC and DC if required Accommodates a maximum of 20 standard single pole breakers, 10 double pole breakers, or 10 single pole breakers with indicating contacts. MCBs used are standard 6kA B-curve to maximum 32A (ABB 251 series or equivalent). Ratings available: 6A, 10A, 16A, 20A and 32A. Any combination of MCBs may be specified. Front panel detachable to allow easy fitting or removal of breakers.
Battery Monitor Precision monitoring of Amp-hours consumed and charged in the battery Battery information: volts , Amps , % charge , time to go , battery high , battery low alarm Low cost solution Single or Dual battery monitoring Wide range of battery voltage options Optional RS232 communication interface Input voltage range from 0 - 350VDC
ARG series Diode Battery Isolators Simultaneous charging of two or more batteries from one source Low voltage drop using Schottky diodes Built in compensation diode 2 or 3 diode models Current ratings 50A , 70A , 100A , 130A Suitable for 12V and 24V battery systems

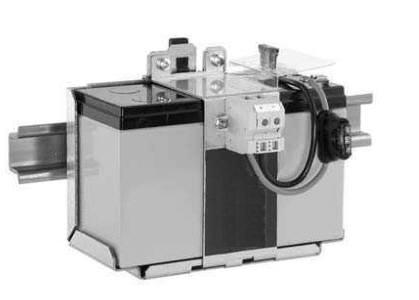

Din Rail Mount Battery Holder for 12V 7.2AH Battery A modular concept allows the user to meet individual application demands Designed to fit 1 x 12V 7.2AH standard sealed lead acid battery DIN-Rail or panel/wall mounting Easy access to the terminals and the fuse Heavy duty fuse holder and spare fuse included
Battery Low Voltage Disconnect 12/24V auto ranging Fully programmable with simple ‘count down’ program Over voltage protection Ignition proof Delayed alarm output Delayed load disconnect
AC Transfer Switch 16A 230VAC Modular design AC transfer switch 16A 230VAC Faster transfer of less than 20msec for sensitive loads Easy wall mounting or chassis mounting Switch loads up to 16A at 230VACM
AC Motor Inrush current limiter Reduces start-up current to less than 45 Amps Eliminates power disturbances, light flicker & motor acoustic noise Self adjusting to motor current In-built motor protection including over/under voltage Re-start delay following power failure to prevent excessive restarts in areas where power quality is poor Random start delay where multiple motors used on same phase, to prevent all motors starting at the same time LED status indicators for self diagnostics Universal wiring terminals
Busbar Terminal - Din Rail Mount Din rail mount busbar terminal strips All terminals are shorted together internally to form a busbar Available in current rating up to 100A Available in 4 way and 12 way
Power Cords Wide range of power cords, Australian approved power cords, rating of 5A , 10A , 15A. Input connectors can be C5 , C7 , C13 and C19

All prices quoted are EX GST - Australian customers need to add 10% GST, International customers do not pay GST
