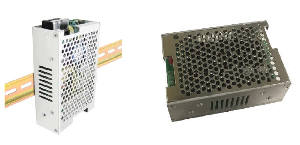

SWD100 -240 Series DC/DC Converter 100W 120W 150W 180W 240W

  • DC/DC Converters 100W 120W 150W 180W
  • Wide Input range 9-36VDC 18-75VDC
  • Din rail or chassis mounting case with screw terminals
  • Six sided Nickel-Coated Copper shield converter modules
  • Suitable for a wide range of industrial applications


    • Data Sheet (pdf)


    SWD100-L-10

    SWD100-L-10

    DC/DC Converter Input: 9-36VDC Output: 10V 10A 100W Din Rail Mount or Chassis Mount

    Part #: SWD100-L-10

    Qty:


    SWD100-L-24

    SWD100-L-24

    DC/DC Converter Input: 9-36VDC Output: 24V 4A 100W Din Rail Mount or Chassis Mount

    Part #: SWD100-L-24

    Qty:


    SWD100-L-30

    SWD100-L-30

    DC/DC Converter Input: 9-36VDC Output: 30V 3.3A 100W Din Rail Mount or Chassis Mount

    Part #: SWD100-L-30

    Qty:


    SWD100-L-48

    SWD100-L-48

    DC/DC Converter Input: 9-36VDC Output: 48V 2A 100W Din Rail Mount or Chassis Mount

    Part #: SWD100-L-48

    Qty:


    SWD150-L-15

    SWD150-L-15

    DC/DC Converter Input: 9-36VDC Output: 15V 10A 150W Din Rail Mount or Chassis Mount

    Part #: SWD150-L-15

    Qty:


    SWD150-L-36

    SWD150-L-36

    DC/DC Converter Input: 9-36VDC Output: 36V 4A 150W Din Rail Mount or Chassis Mount

    Part #: SWD150-L-36

    Qty:


    SWD150-L-45

    SWD150-L-45

    DC/DC Converter Input: 9-36VDC Output: 45V 3.3A 150W Din Rail Mount or Chassis Mount

    Part #: SWD150-L-45

    Qty:


    SWD150-L-72

    SWD150-L-72

    DC/DC Converter Input: 9-36VDC Output: 72V 2A 150W Din Rail Mount or Chassis Mount

    Part #: SWD150-L-72

    Qty:


    SWD120-M-24

    SWD120-M-24

    DC/DC Converter Input: 18-72VDC Output: 24V 5A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-24

    Qty:


    SWD120-M-30

    SWD120-M-30

    DC/DC Converter Input: 18-72VDC Output: 30V 4A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-30

    Qty:


    SWD120-M-48

    SWD120-M-48

    DC/DC Converter Input: 18-72VDC Output: 48V 2.5A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-48

    Qty:


    SWD180-M-36

    SWD180-M-36

    DC/DC Converter Input: 18-72VDC Output: 36V 5A 180W Din Rail Mount or Chassis Mount

    Part #: SWD180-M-36

    Qty:


    SWD180-M-45

    SWD180-M-45

    DC/DC Converter Input: 18-72VDC Output: 45V 4A 180W Din Rail Mount or Chassis Mount

    Part #: SWD180-M-45

    Qty:


    SWD180-M-72

    SWD180-M-72

    DC/DC Converter Input: 18-72VDC Output: 72V 2.5A 180W Din Rail Mount or Chassis Mount

    Part #: SWD180-M-72

    Qty:


    SWD100-L-5-5

    SWD100-L-5-5

    DC/DC Converter Input: 18-72VDC Output: +/- 5V 10A 100W Din Rail Mount or Chassis Mount

    Part #: SWD100-L-5-5

    Qty:


    SWD120-M-1212

    SWD120-M-1212

    DC/DC Converter Input: 18-72VDC Output: +/- 12V 5A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-1212

    Qty:


    SWD120-M-1515

    SWD120-M-1515

    DC/DC Converter Input: 18-72VDC Output: +/- 15V 4A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-1515

    Qty:


    SWD120-M-2424

    SWD120-M-2424

    DC/DC Converter Input: 18-72VDC Output: +/- 24V 2.5A 120W Din Rail Mount or Chassis Mount

    Part #: SWD120-M-2424

    Qty:


    SWD200-L-48

    SWD200-L-48

    DC/DC Converter Input: 9-36VDC Output: 48V 4A 200W Din Rail Mount or Chassis Mount

    Part #: SWD200-L-48

    Qty:


    SWD240-L-24

    SWD240-L-24

    DC/DC Converter Input: 9-36VDC Output: 24V 10A 240W Din Rail Mount or Chassis Mount

    Part #: SWD240-L-24

    Qty:


    SWD240-M-24

    SWD240-M-24

    DC/DC Converter Input: 18-72VDC Output: 24V 10A 240W Din Rail Mount or Chassis Mount

    Part #: SWD240-M-24

    Qty:


    SWD240-M-48

    SWD240-M-48

    DC/DC Converter Input: 18-72VDC Output: 48V 5A 240W Din Rail Mount or Chassis Mount

    Part #: SWD240-M-48

    Qty:
